(EM315 Quad System) E-Move Gear Driven Auto Engaged Mover

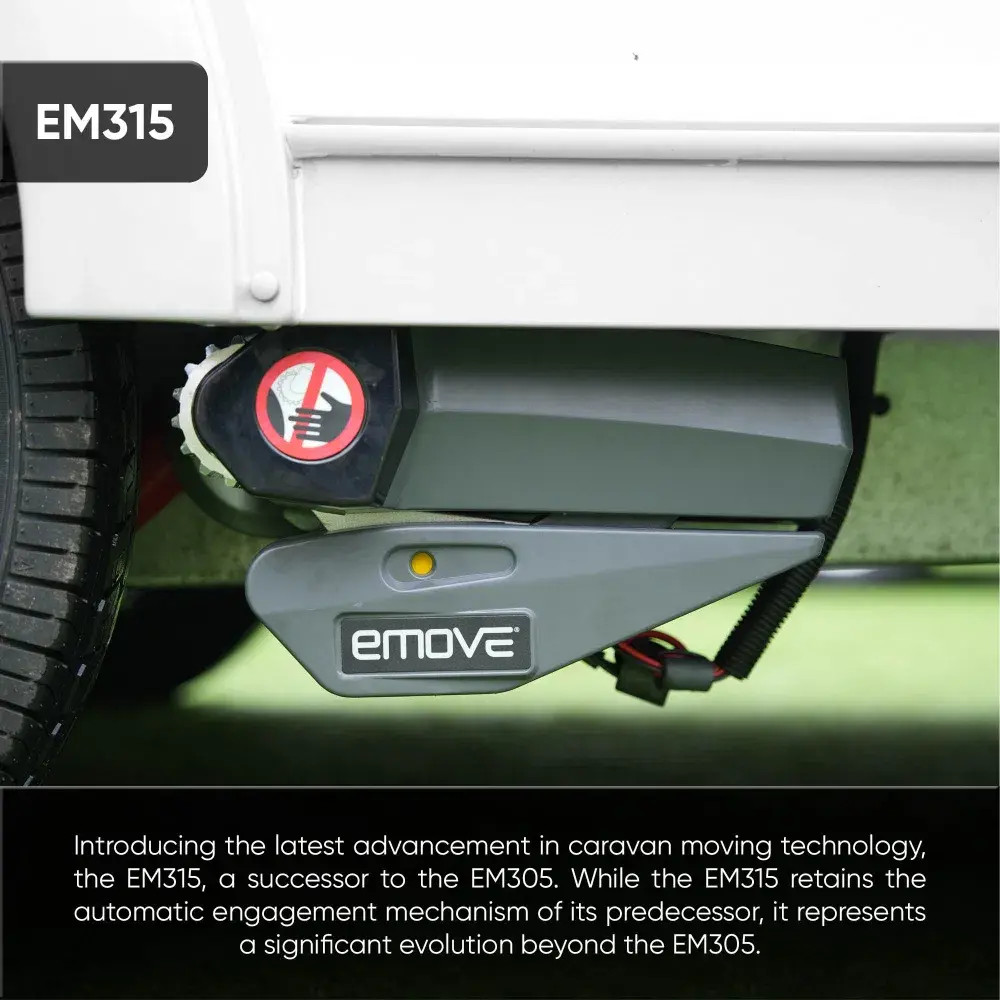

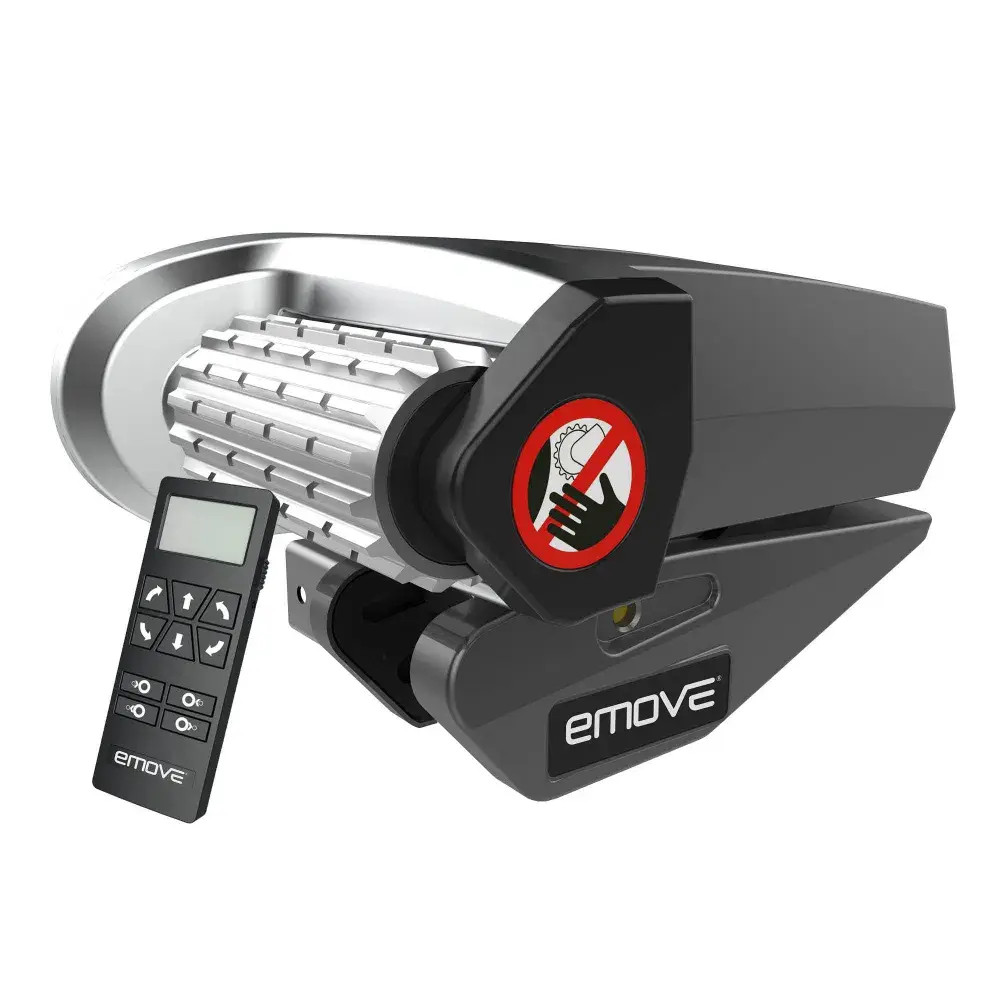

Introducing the latest advancement in caravan moving technology, the EM315, a successor to the EM305. While the EM315 retains the automatic engagement mechanism of its predecessor, it represents a significant evolution beyond the EM305.

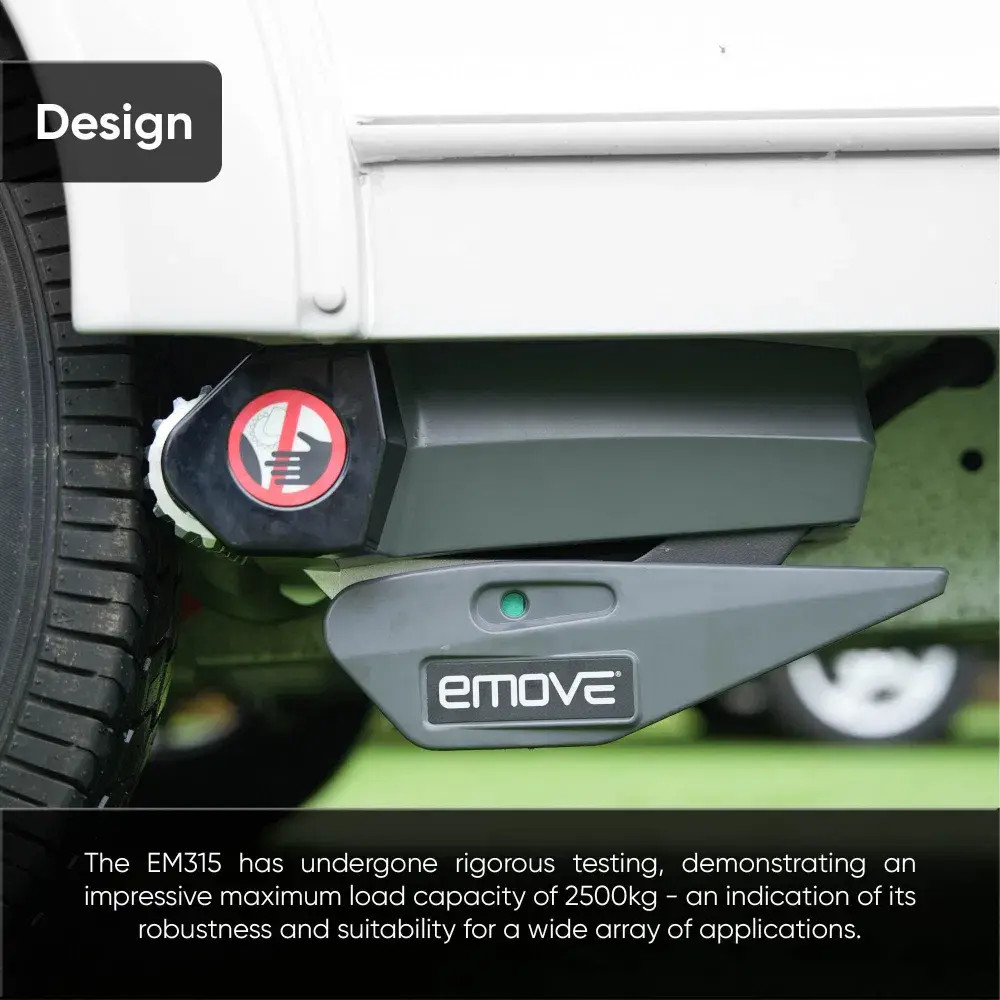

The EM315 boasts a range of enhancements that set it apart. Among these advancements is the improved upon four-pole motor and upgraded gearbox, a vital upgrade that not only increases power output but also increases its reliability and performance making this the go-to mover for any twin axle caravan. The aluminium rollers have undergone a substantial enlargement, with their diameter increasing from 55mm to 70mm - a 21% enhancement. This in turn increases the surface area when engaged onto the tyres and maximises traction, further decreasing the possibility of the rollers slipping on the tyres whilst in operation. The EM315 has undergone rigorous testing, demonstrating an impressive maximum load capacity of 2500kg - an indication of its robustness and suitability for a wide array of applications.

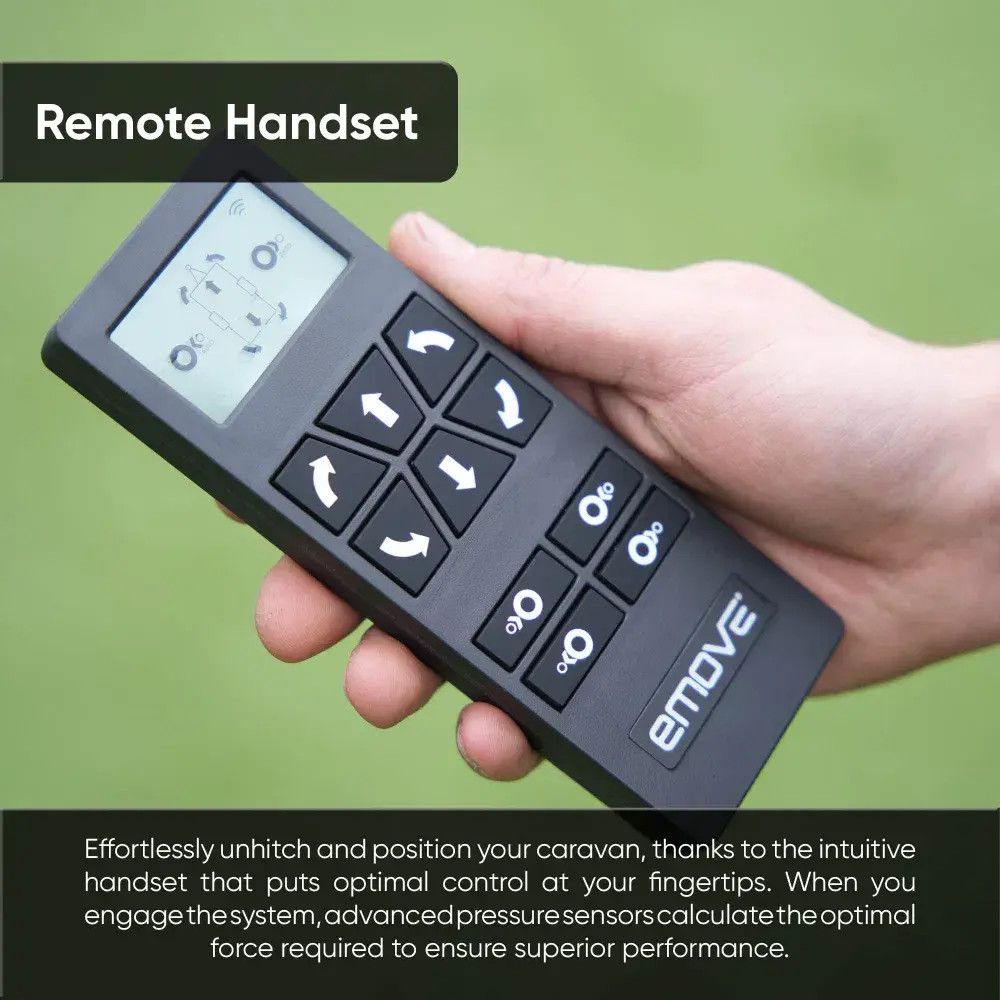

Complementing this is the inclusion of a digital diagnostic handset, providing users with invaluable insights into its operational status. Featuring an LCD screen with max current overload and low battery indicators for both the handset and caravan leisure battery. New design making the EM315 more compact, with a focus on maximising ground clearance. Suitable for L-profile chassis with a depth of 160mm, a 15mm spacer is included with motor clamps to help effortlessly achieve the required clearance.

Conventional caravan movers often suffer from exposed metal components, leading to maintenance challenges and rust formation. The EM315 tackles this issue head-on with its comprehensive full cover, shielding motors and engagement mechanisms from the elements. This feature not only enhances protection but also simplifies cleaning, ensuring your motor mover remains visually appealing for years to come. By reducing the risk of rust and streamlining maintenance, the EM315 offers unmatched durability and aesthetics compared to its counterparts.

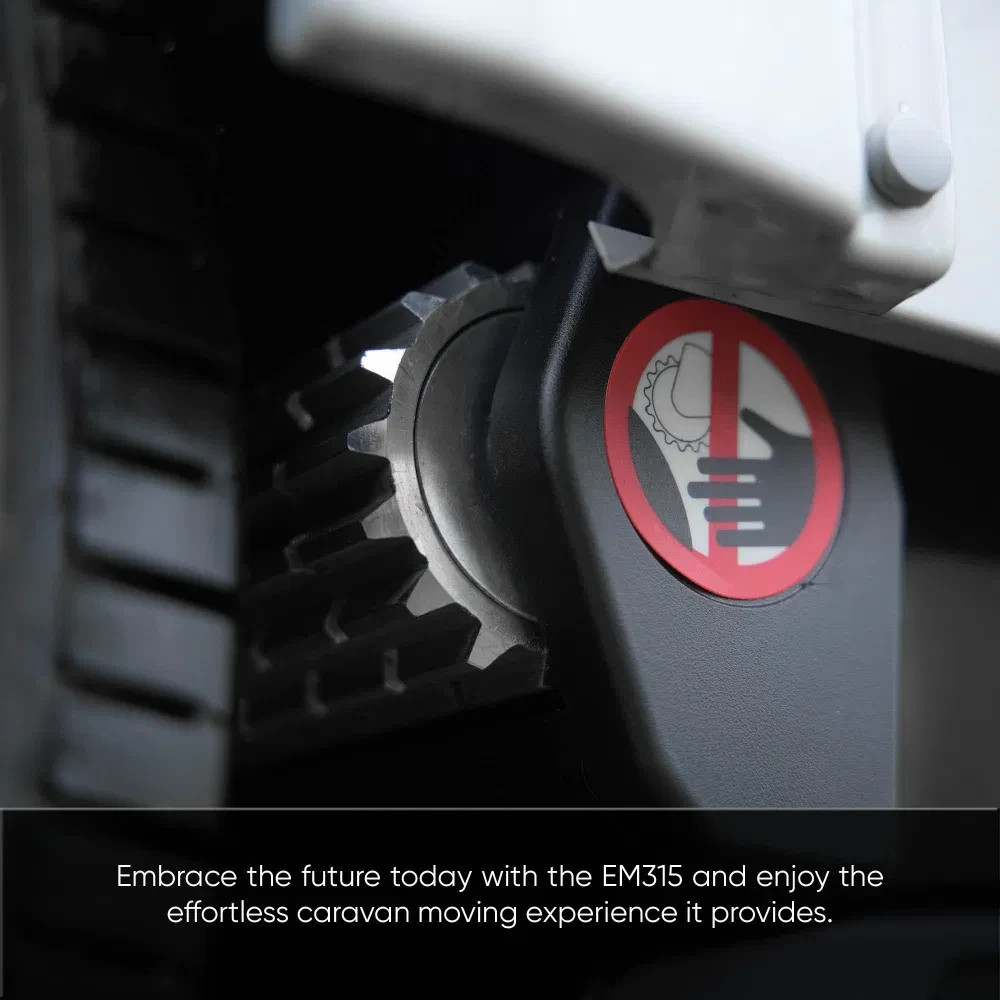

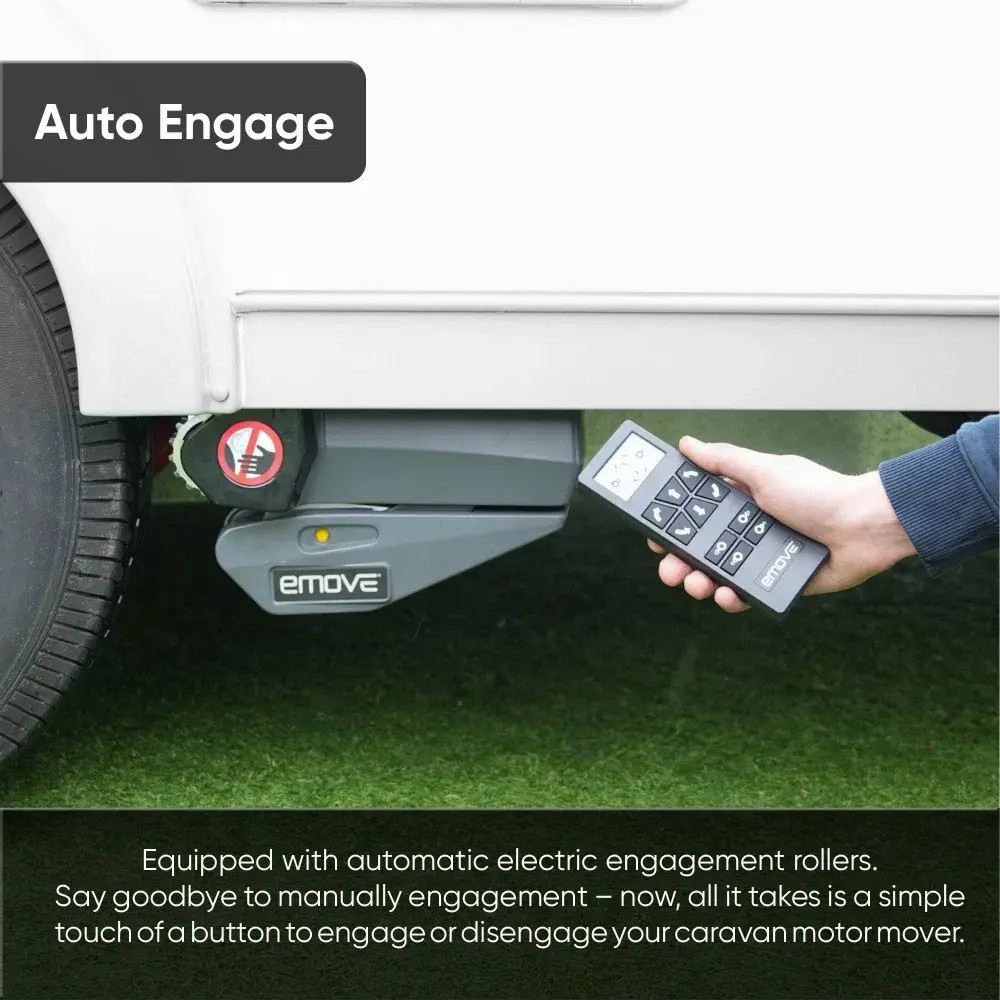

With automatic electric engagement rollers, manual engagement becomes a thing of the past – now, a simple button press is all it takes to activate or deactivate your caravan motor mover. Effortlessly position your caravan with the intuitive handset, granting optimal control at your fingertips. The system's advanced pressure sensors calculate the ideal force for superior performance, even compensating for low tire pressure or worn treads. Leading the industry, the EM315 sets a new standard others strive to meet. Embrace the future today with the EM315 and enjoy the effortless caravan moving experience it provides.

• E-move digital display handset, offering convenient access to the status of the caravan mover with power overload and low battery indicators.

• Fully automatic dual roller engagement system for effortless manoeuvring.

• E-Cover provides comprehensive all-season protection for both motor and engagement mechanism.

• Oversized alloy rollers maximising tyre contact area and traction.

• Versatility to accommodate single and twin axle caravans at a flick of a switch. (4WD twin axle systems require TWO full kits, one handset pairs to both control units)

• E-coating on paintwork and full cover for added durability and protection against the elements.

• Incorporates soft start/stop technology for precise and shockproof control.

• Backed by a full 5-year parts and labour warranty, providing peace of mind for users.

• Optional Extras: Emove Smart Phone App and Hardware

• Model Number: EM315

• Maximum Load: 2500kg (2100kg on 18% gradient)

• Motor Brushes; 4

• Speed on Flat surface Cm per second: 14 cm per Second

• Roller Diameter: 70mm

• Product Size: 35.3x22.2x19.2cm
